Build and validation

How the model plus live Synapse data becomes a validated merged graph. See Model and identifiers and Publishing and deposit for what happens before and after. The kg-pipeline README has the full flag reference.

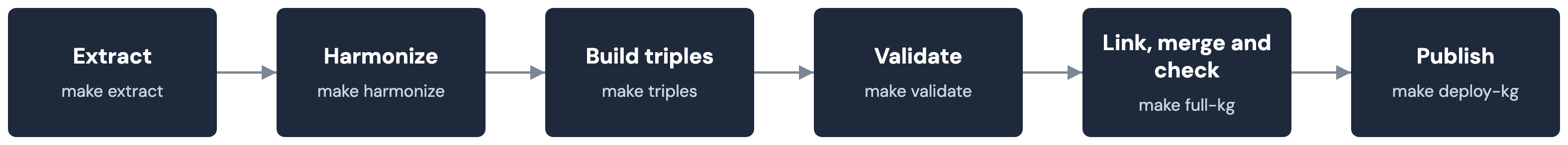

The stage pipeline

Stage	Make target	Script	Input	Output
0	make mc2-model-linkml	scripts/vendor/csv_to_linkml.py + scripts/resolve_prefixes.py	mc2.model.csv, modules/mapping.yaml	schema/mc2_model.linkml.yaml
Schema	make schema	linkml generate owl	Both LinkML schemas	schema/mc2_model.ttl, schema/cckp_portal.ttl
Extract	make extract	scripts/extract_cckp_tables.py	Synapse: 5 CCKP View tables	data/raw/*.csv, data_sources.yaml
Harmonize	make harmonize	scripts/harmonize.py	data/raw/*.csv, this repo's CVs	data/harmonized/*_harmonized.csv, mappings/sssom/*.sssom.tsv
Triples	make triples	scripts/build_triples.py	Harmonized CSVs, schema TTLs	data/rdf/{Class}.ttl, merged into cckp_kg.ttl
DataCatalog	make triples-datacatalog	scripts/build_datacatalog_triples.py	Native Synapse Dataset annotations	data/rdf/DataCatalog.ttl
SCDM link	make link-scdm	scripts/link_scdm.py	Reviewed crosswalk rows	data/rdf/scdm_links.ttl
Crosswalk link	make link-ontology-crosswalk	scripts/link_ontology_crosswalk.py	Reviewed MONDO/UBERON rows	data/rdf/ontology_crosswalk_links.ttl
Merge	make full-kg	scripts/merge_ttl.py	All of the above	data/rdf/cckp_kg_full.ttl
Manifest	make manifest	scripts/build_manifest.py	The merged graph, git metadata	data/rdf/manifest.ttl

make full-kg rebuilds every input fresh into a separate output file rather than mutating cckp_kg.ttl in place (see "Consuming the graph" in the kg-pipeline README).

Harmonization and SSSOM

make harmonize resolves every CV-backed portal value against the vocabulary it maps to, including nonpreferred terms as aliases.

Report	Meaning
unmapped_terms.csv	A value that matched nothing — passed through unresolved, never dropped
malformed_cv_terms.csv	A CV row's own identifier or URL isn't valid — treated as no mapping
mappings/sssom/{enum}.sssom.tsv	Every value that did resolve, as a reviewable byproduct

Each pass (portal, DataCatalog, the private assay layer) writes its own SSSOM files, so none overwrite each other.

A coverage gate compares each field's unmapped-value count against a committed baseline, failing only if the count grows. make update-coverage-baseline moves it forward after an intentional change.

Suggest-mappings and crosswalks (human review, never auto-applied)

make suggest-mappings turns unresolved values into a reviewable worklist: a curation gap, a likely typo, or a candidate term from an external registry. It never edits a CV file directly.

make crosswalk-ontology/make crosswalk-scdm propose a second kind of crosswalk, from this pipeline's own CVs to the ontologies sagebrain-model and SCDM use for the same concepts (details in the kg-pipeline README).

Crosswalk	Target	Review gate	Status
consortium_to_scdm_program.tsv	sagecdm:Program	reviewed column, default false	All 11 rows reviewed — 11 Program nodes exist
MONDO/UBERON tumor-type/tissue crosswalks	link_ontology_crosswalk.py	reviewed column, default false	Every shipped row still unreviewed — 0 edges minted
institution_to_scdm_organization.tsv	sagecdm:Organization	None — a ROR id is already the institution's identity	Nodes and edges mint on every run
investigatorRef/contributorRef Person stubs	sagecdm:Person	None — not gated	Flagged cckp:provisional true instead of resolved

Only a row flipped to reviewed=true becomes an edge for the gated crosswalks, and the gate is preserved across regeneration.

Validation

scripts/validate_graph.py runs independently invokable checks:

Check	Catches	Severity
--parse-only	RDF syntax errors	Fails the build
--coverage	The ratchet described above	Fails the build
--shacl structural shapes (sh:class join targets, external-IRI patterns)	A join landing on the wrong class, a malformed DOI/PubMed IRI	Fails the build
--shacl literal data-quality shapes	A row's own field not fitting its expected shape	Printed only
--queries sanity checks (queries/*.rq)	Core classes present, dual-typing consistency, merged-node conflicts	Fails the build if not met

SHACL validation runs without RDFS/OWL entailment, matching sagebrain-model's own configuration — inference would make a class membership check vacuous by entailing the very type it's checking for.

All 6 queries/*.rq checks currently pass; queries/examples/*.rq is a separate, non-pass/fail cookbook — see Querying the graph.

Tests

kg-pipeline/test/ is a pytest suite (make test) on small, hand-made fixtures — no live Synapse access needed.
